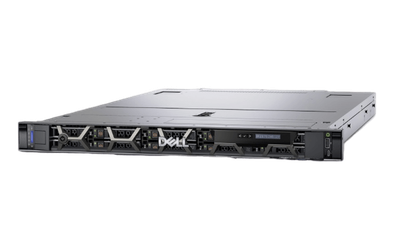

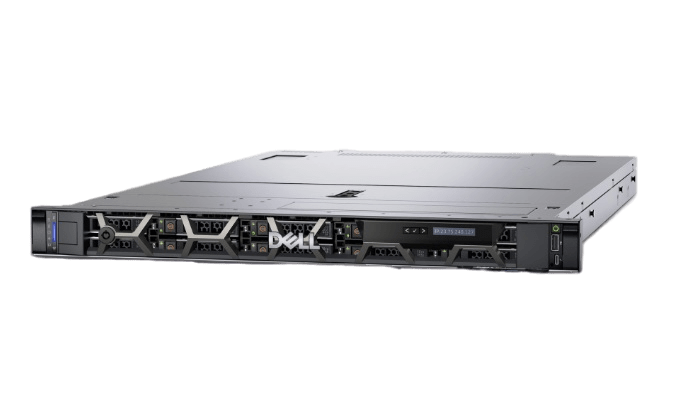

Dell PowerEdge R650xs

Технические характеристики

Процессор

До двух масштабируемых процессоров Intel Xeon 3-го поколения с количеством ядер до 32 на процессор
Воздушное охлаждение

Операционная система

Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Chipset

Intel C620A series chipset

Память

DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR4 DIMM slots

Maximum RAM
RDIMM 1 TB

Место хранения

Front Bays
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB

Rear bays
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB

Контроллеры хранения данных

Internal Controllers
PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355I

External Controllers
PERC H840, HBA355E

Software RAID
S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or Internal USB

Безопасность

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Управление

Встроенный / На сервере

iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Консоли

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Инструменты

RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs

Интеграции с OpenManage

BMC Truesight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter and vRealize Operations Manager

Соединения OpenManage

IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI

Источники питания

600W Platinum 100–240 VAC or 240 VDC, hot swap redundant
700W Titanium 200–240 VAC or 240 VDC, hot swap redundant
800W Platinum 100–240 VAC or 240 VDC, hot swap redundant
1100W DC/-48–(-60) V
1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant
1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant
1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant

Порты

Параметры сети
2 x 1 GbE LOM and 1 x OCP 3.0

Передние порты
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

Задние порты
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA

Внутренние порты
1 x USB 3.0 (optional)

Слоты

PCIe
Up to 3 x PCIe Gen4 slots

Video Card
1 x VGA
