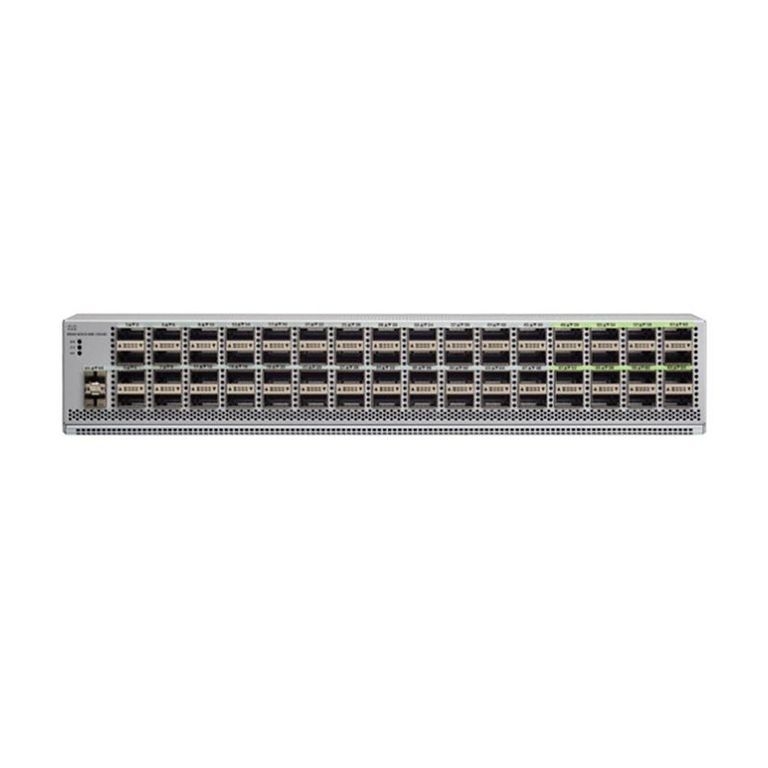

N9K-C9364C

N9K-C9364C - это коммутатор Nexus 9364C ACI с 64p 40/100g QSFP28. Коммутатор Cisco Nexus 9364C ACI Spine Switch представляет собой коммутатор с 2 стойками (2RU) для Cisco ACI, который поддерживает пропускную способность 12,84 Тбит / с и 4,3 бит / с через 64 фиксированных порта QSFP28 40 / 100G и 2 фиксированных порта SFP 1 / 10G. Прерывание не поддерживается на портах с 1 по 64. Последние 16 портов, отмеченные зеленым цветом, поддерживают шифрование MACsec со скоростью передачи данных

Описание

Physical	● 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● Hot-swappable, dual fan trays with redundant fans ● System memory: 32GB ● SSD: 256GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● Broadwell-DE CPU: 4 cores
Power and Cooling	● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC ● Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W; PSU redundancy is not supported when used in 100-120V ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● RoHS compliance: Yes ● Hot swappable: Yes ● Port-side intake or port-side exhale options ● Typical power: 429W (AC) ● Maximum power: 1245W (AC)
Environmental	● Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) ● Weight: 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C) ● Humidity: 5 to 85% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m)
Acoustics	● Fan speed at 40%: 76.7 dBA ● Fan speed at 70%: 88.7 dBA ● Fan speed at 100%: 97.4 dBA
MTBF	● 257,860 hours
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943
EMC: Emissions	● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A
EMC: Immunity	● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series
RoHS	The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors
