Cisco Nexus 9000 Switches

Артикул: 1090

Cрок поставки : 25 сентября

Артикул: 1090

Cрок поставки : 25 сентября

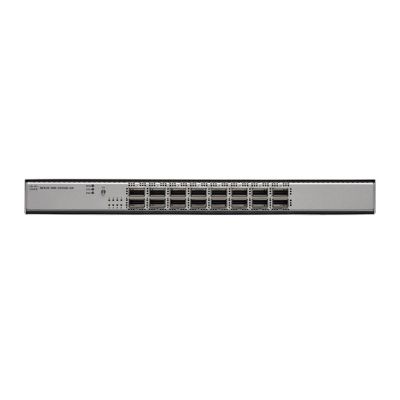

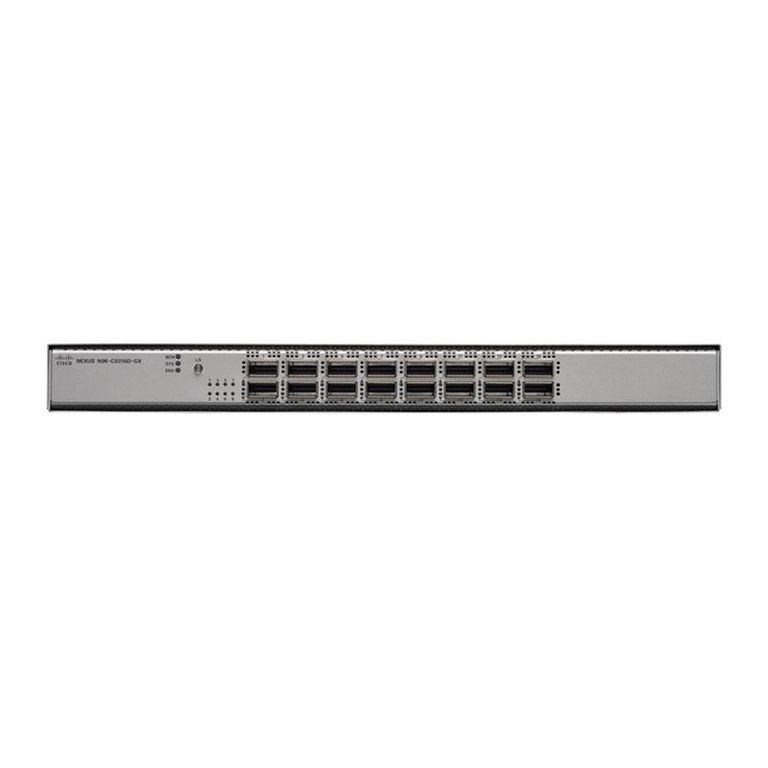

N9K-C9316D-GX

N9K-C9316D-GX - это коммутатор Cisco Nexus 9316D с 16p 400 / 100G QSFP-DD.Коммутаторы Cisco Nexus® 9300-GX, основанные на технологии Cisco® Cloud Scale, представляют собой следующее поколение стационарных коммутаторов Cisco Nexus серии 9000. Платформа представляет полностью обратно совместимый оптический интерфейс 400G Quad малого форм-фактора с возможностью подключения с двойной плотностью (QSFP–DD) для прозрачного переноса существующих сетей центров обработки данных со скоростей 40 Гбит / с и 100 Гбит / с до 400 Гбит / с.

Описание


Ports	● 16 x 400/100/40-Gbps QSFP-DD ports
Physical	● System memory: 16 GB NX-OS, 24 GB ACI ● Solid-State Disk (SSD): 128 GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● Broadwell-DE CPU: 4 cores ● Dimensions (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Packet buffer	● 80 MB centralized buffer
Cooling	● Fans: NXA-FAN-35CFM-PI and NXA-FAN-35CFM-PE ● 5+1 redundancy ● Port-side intake or port-side exhaust airflow direction ● Hot swappable: Yes
Power	● AC: ◦ 1100 Watt (W) AC power supplies (up to 2) ◦ 1+1 redundancy ◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load) ◦ Frequency: 50 to 60 Hz (AC) ◦ RoHS compliance: Yes ◦ Hot swappable: Yes ◦ Port-side intake or port-side exhaust options ◦ Typical power: 650W (AC) ● DC: ◦ 1100 Watt (W) DC power supplies (up to 2) ◦ 1+1 redundancy ◦ 80 Plus Platinum-rated power supplies with efficiency of 90% or greater (20 to 100% load) ● High-voltage AC/DC ◦ Power: 1200W AC, 930W DC, or 1200W HVAC/HVDC ◦ Input voltage: 100 to 240V * AC or –40 to –72V DC (minimum and maximum), –48 to –60V DC (nominal)
Environmental	● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: -40 to 158°F ● (-40 to 70°C) ● Humidity: 5 to 85% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m)
Maximum number of IPv4 Longest Prefix Match (LPM) routes	896,000
Maximum number of IPv4 host entries	896,000
Maximum number of MAC address entries	256,000
Maximum number of multicast routes	32,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups	Shipping: 8000 Maximum: 32,000
Maximum number of Access-Control-List (ACL) entries	Per slice of the forwarding engine: ● 5000 ingress ● 2000 egress ● Max: 20,000 ingress, 8000 egress
Maximum number of VLANs	3967
Number of Virtual Routing and Forwarding (VRF) instances	Shipping: 1000 Maximum: 16,000
Maximum number of ECMP paths	64
Maximum number of port channels	512
Maximum number of links in a port channel	32
Number of active SPAN sessions	4
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances	3967
Maximum number of Hot-Standby Router Protocol (HSRP) groups	490
Maximum number of Multiple Spanning Tree (MST) instances	64
Flow-table size used for Cisco Tetration Analytics platform	64,000
Number of Network Address Translation (NAT) entries	1023
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.
Safety	● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943
EMC: Emissions	● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A Note: Cisco Nexus N9K-C9364C passes EMC Radiated Emissions standards in all configurations, with the only exception being if more than 40 pluggable optics of Cisco part number 10-3142-02 (or 10-3142-01) are used.
EMC: Immunity	● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series
RoHS	The product is RoHS-6 compliant with exceptions for leaded Ball Grid-Array (BGA) balls and lead press-fit connectors.
